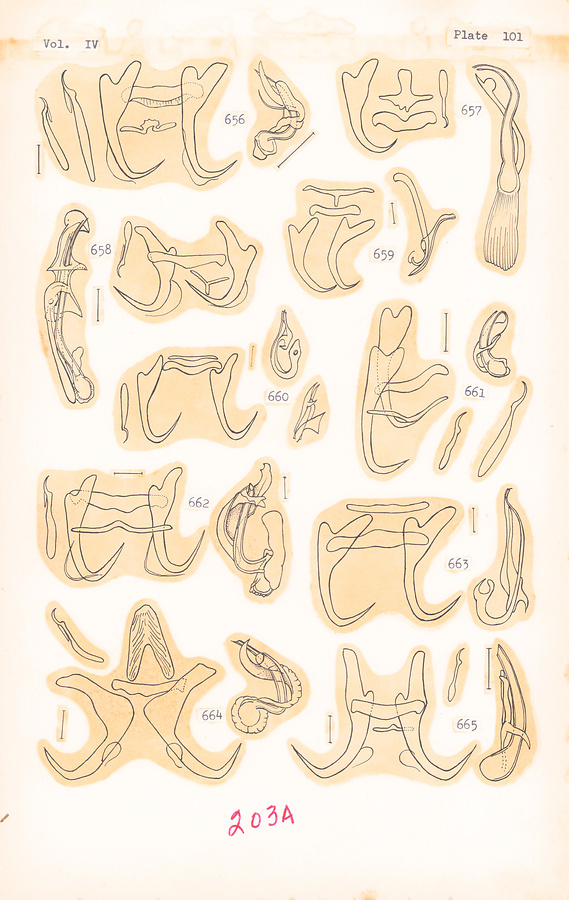

Plate 101.
Fig. 656. Neodactylogyrus gobioninum (Gussev, 1955); anchor complex and copulatory organ.
Fig. 657. Neodactylogyrus haplogonus (Bychowsky, 1933); anchor complex and copulatory organ.
Fig. 658. Neodactylogyrus kurenkowi (Gussev, 1955); anchor complex (×620) and copulatory organ (×925).
Fig. 659. Neodactylogyrus hypophthalmichthys (Achmerow, 1952); copulatory organ, two bars and two anchors.
Fig. 660. Neodactylogyrus hemibarbi (Achmerow, 1952); copulatory organ in different views and anchor complex.
Fig. 661. Neodactylogyrus laymanianus (Gussev, 1955); copulatory organ and anchor complex.
Fig. 662. Neodactylogyrus grandicirrus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 663. Neodactylogyrus gussevi (Achmerow, 1952); copulatory organ and anchor complex.
Fig. 664. Neodactylogyrus facetus (Gussev, 1955); copulatory organ and anchor complex.
Fig. 665. Neodactylogyrus gvozdevi (Gussev, 1955); copulatory organ and anchor complex.

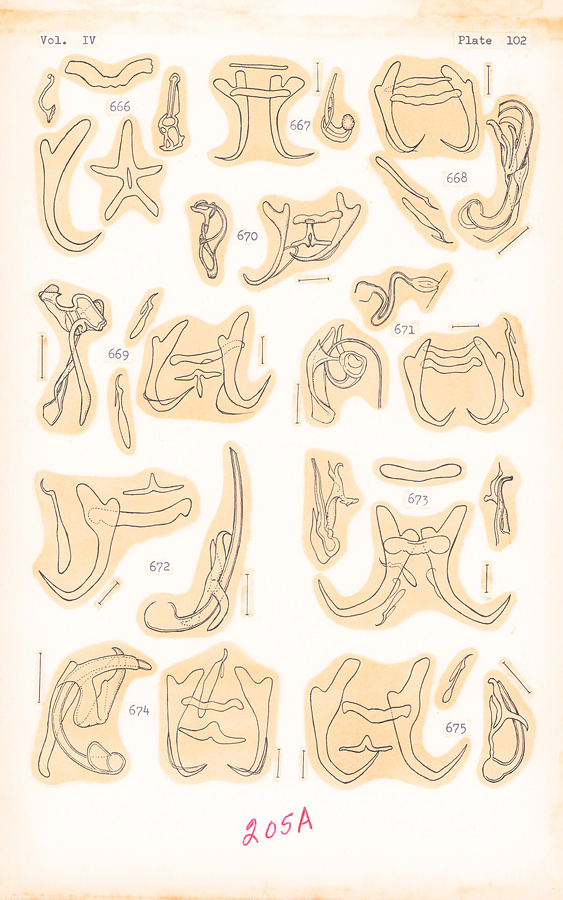

Plate 102.
Fig. 666. Neodactylogyrus jamansajensis (Osmanov, 1958); anchor, two bars, copulatory organ and vagina.
Fig. 667. Neodactylogyrus gobii (Gvozdev, 1950); copulatory organ and anchor complex.
Fig. 668. Neodactylogyrus latituba (Gussev, 1955); anchor complex and copulatory organ.
Fig. 669. Neodactylogyrus montschadskyi (Gussev, 1955); copulatory organ and anchor complex.
Fig. 670. Neodactylogyrus nanus (Dogiel et Bychowsky, 1933); copulatory organ and anchor complex.
Fig. 671. Neodactylogyrus nikolskyi (Gussev, 1955); vagina, anchor complex and copulatory organ.
Fig. 672. Neodactylogyrus malewitzkajae (Gussev, 1955); two bars, anchor, marginal hooklet, and copulatory organ.
Fig. 673. Neodactylogyrus minutus (Kulwiec, 1927); copulatory organ and anchor complex. After Gussev, 1955.
Fig. 674. Neodactylogyrus leucisculus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 675. Neodactylogyrus phoxini (Malewitzkaja, 1949); copulatory organ and anchor complex.

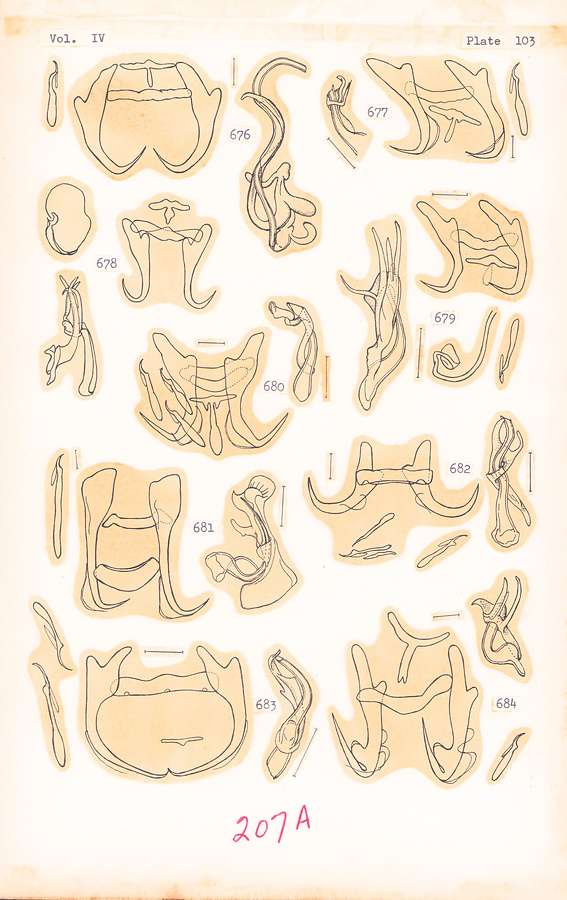

Plate 103.
Fig. 676. Neodactylogyrus proprius (Gussev, 1955); anchor complex and copulatory organ.
Fig. 677. Neodactylogyrus petruschewskyi (Gussev, 1955); copulatory organ and anchor complex.
Fig. 678. Neodactylogyrus mongolicus (Achmerow, 1952); copulatory organ, anchor complex and vagina.
Fig. 679. Neodactylogyrus pannosus (Gussev, 1955); vagina, copulatory organ and anchor complex.
Fig. 680. Neodactylogyrus zalesskyi (Gussev, 1955); anchor complex and copulatory organ.
Fig. 681. Neodactylogyrus primarius (Gussev, 1955); anchor complex and copulatory organ.
Fig. 682. Neodactylogyrus pterygialis (Gussev, 1955); anchor complex and copulatory organ.
Fig. 683. Neodactylogyrus peculiaris (Gussev, 1955); anchor complex and copulatory organ.
Fig. 684. Neodactylogyrus pterocleidus (Gussev, 1955); anchor complex and copulatory organ.

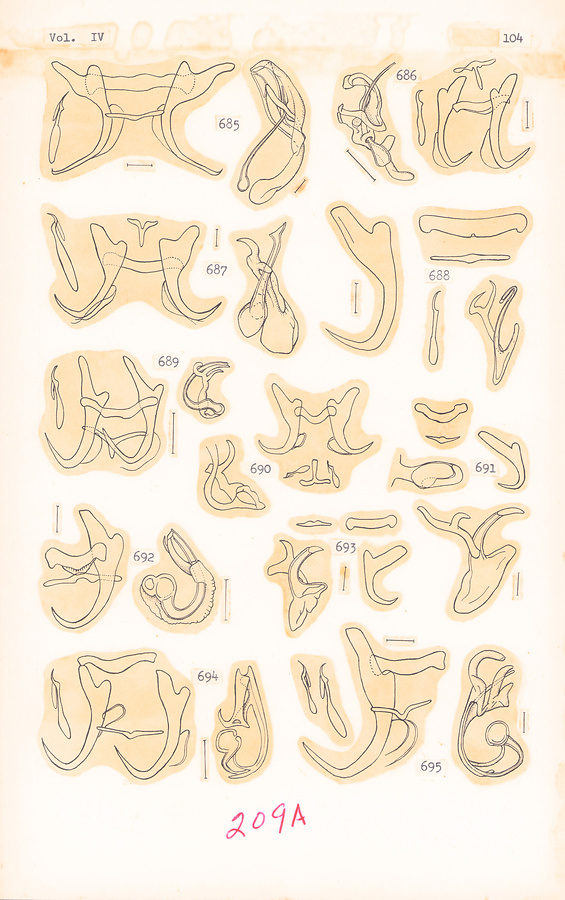

Plate 104.
Fig. 685. Neodactylogyrus palliatus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 686. Neodactylogyrus pellucidus (Gussev, 1955); copulatory organ and anchor complex.
Fig. 687. Neodactylogyrus peltatus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 688. Neodactylogyrus photogenis (Mueller, 1938); copulatory organ, two bars, marginal hooklet and anchor.
Fig. 689. Neodactylogyrus pusillus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 690. Neodactylogyrus propinquus (Bychowsky, 1931); anchor complex.
Fig. 691. Neodactylogyrus rubellus (Mueller, 1938); copulatory organ, two bars, vagina and anchor.
Fig. 692. Neodactylogyrus pseudogobii (Achmerow, 1952); anchor complex and copulatory organ. After Gussev, 1955.
Fig. 693. Neodactylogyrus perlus (Mueller, 1938); anchor, two bars and copulatory organ.
Fig. 694. Neodactylogyrus rarus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 695. Neodactylogyrus rostrum (Gussev, 1955); anchor complex and copulatory organ.

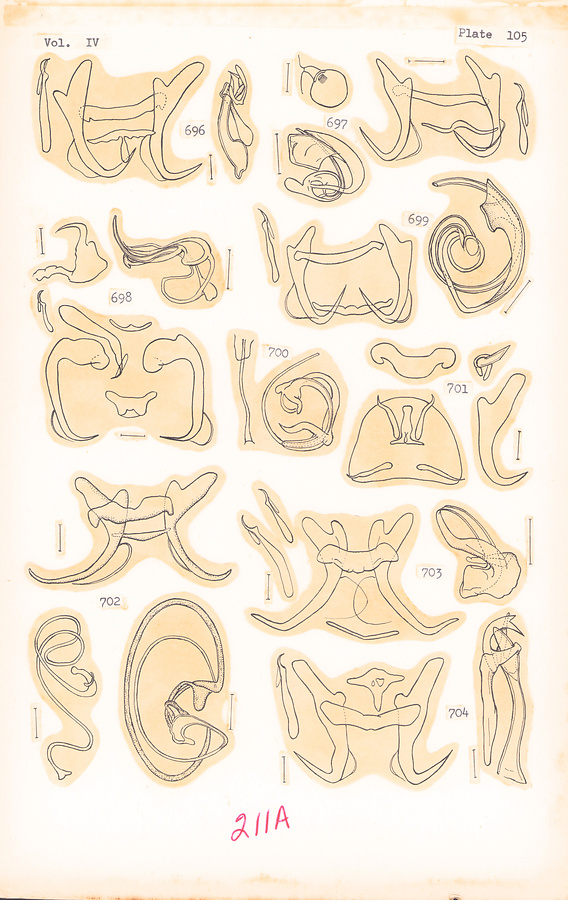

Plate 105.
Fig. 696. Neodactylogyrus strelkowi (Gussev, 1955); anchor complex and copulatory organ.
Fig. 697. Neodactylogyrus securiformis (Gussev, 1955); vagina, copulatory organ and anchor complex.
Fig. 698. Neodactylogyrus sparsus (Gussev, 1955); anchor complex, vagina and copulatory organ.
Fig. 699. Neodactylogyrus spirocirrus (Gussev, 1955); copulatory organ anchor complex.
Fig. 700. Neodactylogyrus trioxonis (Achmerow, 1952); vagina and copulatory organ. After Gussev, 1955.
Fig. 701. Neodactylogyrus scutatus (Mueller, 1938); two bars, anchor, four marginal hooklets, and copulatory organ. After Gussev, 1955.
Fig. 702. Neodactylogyrus tuba (Linstow, 1878); vagina, copulatory organ and anchor complex. After Prost, 1957.
Fig. 703. Neodactylogyrus squameus (Gussev, 1955); copulatory organ and anchor complex.
Fig. 704. Neodactylogyrus scalpelliformis (Gussev, 1955); anchor complex.

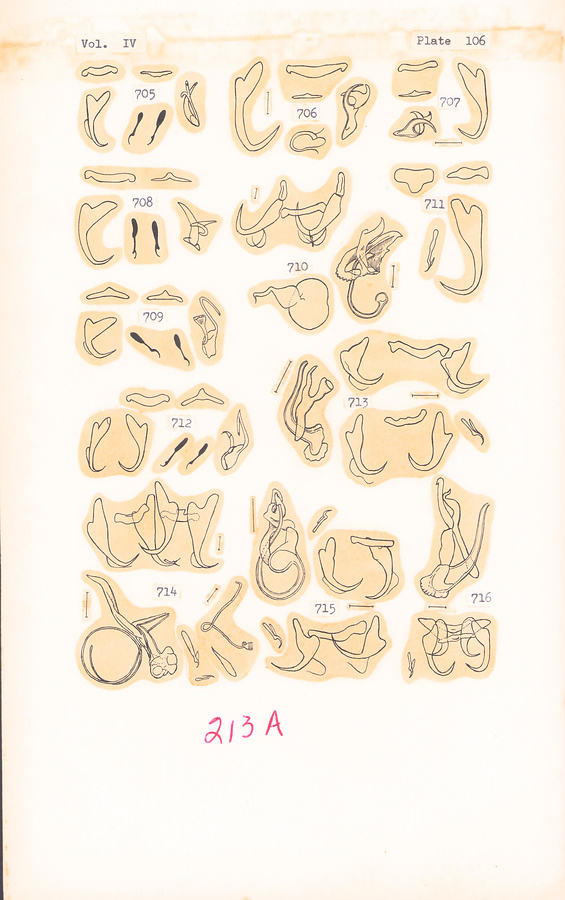

Plate 106.
Fig. 705. Neodactylogyrus distinctus (Mizelle et Klucka, 1953); anchor, two bars, two hooklets and copulatory organ.
Fig. 706. Neodactylogyrus duquesni (Mueller, 1938); two bars, anchor, vagina and copulatory organ.
Fig. 707. Neodactylogyrus orchis (Mueller, 1938); copulatory organ, two bars and anchor.
Fig. 708. Neodactylogyrus attenuatus (Mizelle et Klucka, 1953); anchor, dorsal bar, three hooklets, ventral bar and copulatory organ.
Fig. 709. Neodactylogyrus vannus (Mizelle et Klucka, 1953); copulatory organ, two bars, two hooklets and anchor.
Fig. 710. Ancylodiscoides strelkowi Achmerow, 1952; copulatory organ, anchor complex and vagina. After Gussev, 1955.
Fig. 711. Neodactylogyrus simplicimalleatus (Bychowsky, 1931); anchor, two bars and hooklet.
Fig. 712. Neodactylogyrus pyriformis (Mizelle et Klucka, 1953); two anchors, two hooklets, copulatory organ and two bars.
Fig. 713. Ancyrocephalus assimilis Gussev, 1955; two anchor complexes and copulatory organ.
Fig. 714. Ancyrocephalus pavlovskyi Gussev, 1955; copulatory organ, five hooklets, two anchor complexes, and vagina.
Fig. 715. Ancyrocephalus pseudorasborae Achmerow, 1952; two anchor complexes, copulatory organ and two hooklets.
Fig. 716. Ancyrocephalus polymorphus Gussev, 1955; anchor complex and copulatory organ.

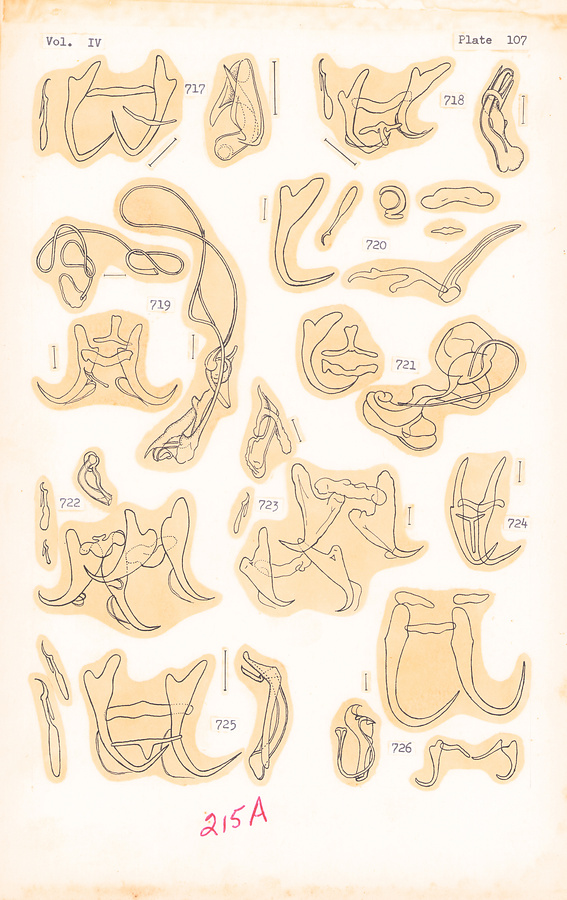

Plate 107.
Fig. 717. Neodactylogyrus trullaeformis (Gussev, 1955); anchor complex and copulatory organ.
Fig. 718. Neodactylogyrus tridigitatus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 719. Neodactylogyrus wunderi (Bychowsky, 1931); vagina, anchor complex and copulatory organ. After Gussev, 1952.
Fig. 720. Neodactylogyrus urus (Mueller, 1938); copulatory organ, two bars, vagina, hooklet and anchor.
Fig. 721. Neodactylogyrus zandti (Bychowsky, 1933); anchor and two bars (×620) and copulatory organ (×925).
Fig. 722. Ancyrocephalus skrjabini Gussev, 1955; two anchor complexes and copulatory organ.
Fig. 723. Ancyrocephalus perplexus Gussev, 1955; copulatory organ and two anchor complexes.
Fig. 724. Neodactylogyrus xenocypris (Achmerow, 1952); anchor complex.
Fig. 725. Neodactylogyrus zachvatkini (Gussev, 1955); anchor complex and copulatory organ.
Fig. 726. Ancylodiscoides varicus Achmerow, 1952; copulatory organ and two anchor complexes.
Plate 108.
Fig. 727. Neodactylogyrus chinensis (Gussev, 1955); copulatory organ and anchor complex.
Fig. 728. Neodactylogyrus rimsky-korsakowi (Gussev, 1955); copulatory organ and anchor complex.
Fig. 729. Neodactylogyrus sungariensis (Gussev, 1955); anchor complex, vagina and copulatory organ.
Fig. 730. Dactylogyrus parabramis Achmerow, 1952; copulatory organ, anchor complex and two hooklets.
Fig. 731. Neodactylogyrus magnicirrus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 732. Neodactylogyrus duplus (Gussev, 1955); anchor complex and copulatory organ.
Fig. 733. Neodactylogyrus slastnikowi (Gussev, 1955); anchor complex and copulatory organ.
Fig. 734. Ancyrocephalus hemibarbi Achmerow, 1952; two hooklets, two anchor complexes and copulatory organ.
Fig. 735. Neodactylogyrus pseudogobii (Achmerow, 1952); anchor complex, two hooklets and copulatory organ. Cf. Fig. 692 after Gussev, 1955.
Fig. 736. Neodactylogyrus anguillae Yin et Sproston, 1949; anchor complex.
Fig. 737. Dactylogyrus charbinensis Gussev, 1955; copulatory organ and anchor complex.
Fig. 738. Dactylogyrus anchoratus geei Yin et Sproston, 1949; anchor complex.

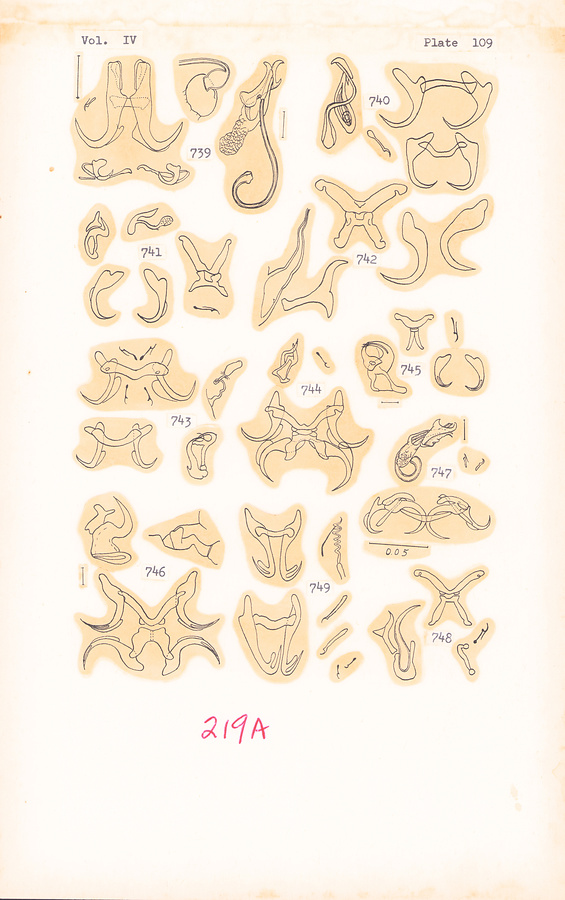

Plate 109.
Fig. 739. Ancylodiscoides rimsky-korsakowi Achmerow, 1952; two anchor complexes, vagina and copulatory organ. After Gussev, 1955.
Fig. 740. Ancyrocephalus curtus Achmerow, 1952; copulatory organ and two anchor complexes.
Fig. 741. Actinocleidus subtriangularis Mizelle et Jaskoski, 1942; anchor complex, copulatory organ, vagina with seminal receptacle.
Fig. 742. Actinocleidus gracilis Mueller, 1937; cirrus and its accessory piece, two anchors and X-shaped bar.
Fig. 743. Cleidodiscus chelatus Mizelle et Jaskoski, 1942; two anchor complexes, vagina and copulatory organ.
Fig. 744. Actinocleidus brevicirrus Mizelle et Jaskoski, 1942; anchor complex, hooklet and copulatory organ.
Fig. 745. Actinocleidus bifurcatus Mizelle, 1941; X-shaped bar, hooklet, two anchors and copulatory organ.
Fig. 746. Actinocleidus articularis (Mizelle, 1936); vagina, copulatory organ and anchor complex.
Fig. 747. Ancylodiscoides poljanskyi Gussev, 1955; anchor complex, copulatory organ and two marginal hooklets.
Fig. 748. Actinocleidus fergusoni Mizelle, 1938; copulatory organ, vagina, hooklet and X-shaped bar.
Fig. 749. Cleidodiscus miniatus Mizelle et Jaskoski, 1942; two anchor complexes, vagina and two hooklets.

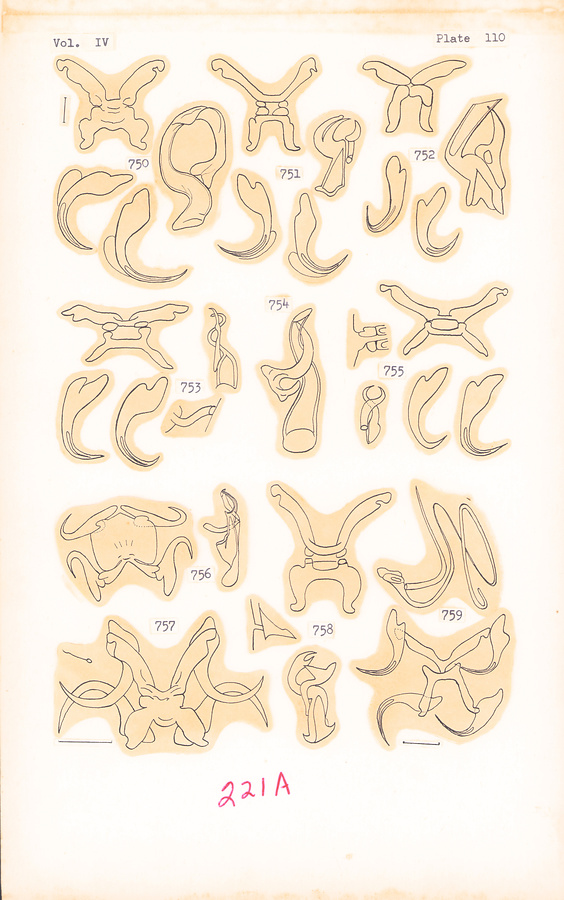

Plate 110.
Fig. 750. Actinocleidus maculatus Mueller, 1937; X-shaped bar, copulatory organ and two anchors.
Fig. 751. Actinocleidus crescentis Mizelle et Cronin, 1943; two anchors, copulatory organ and X-shaped bar.
Fig. 752. Actinocleidus unguis Mizelle et Cronin, 1943; copulatory organ, X-shaped bar and two anchors.
Fig. 753. Actinocleidus harquebus Mizelle et Cronin, 1943; X-shaped bar, vagina, copulatory organ and two anchors.
Fig. 754. Actinocleidus bursatus (Mueller, 1936); copulatory organ.
Fig. 755. Actinocleidus bakeri Mizelle et Cronin, 1943; vagina, copulatory organ, X-shaped organ and two anchors.
Fig. 756. Actinocleidus fusiformis (Mueller, 1934); anchor complex after Mueller, 1936; copulatory organ after Mizelle and Regensberger, 1945.
Fig. 757. Actinocleidus oculatus (Mueller, 1934); anchor complex. After Mueller, 1936.
Fig. 758. Actinocleidus bifidus Mizelle et Cronin, 1943; copulatory organ, vagina and X-shaped bar.
Fig. 759. Actinocleidus longus Mizelle, 1938; copulatory organ and anchor complex.
